| الاسم التجاري: | 3M |
| رقم الطراز: | 5419 |
| الـ MOQ: | 1 roll |
| السعر: | USD1~USD50 |
| وقت التسليم: | 3 ~ 5 أيام عمل بشكل طبيعي |
| شروط الدفع: | تي/تي |
Product Description :

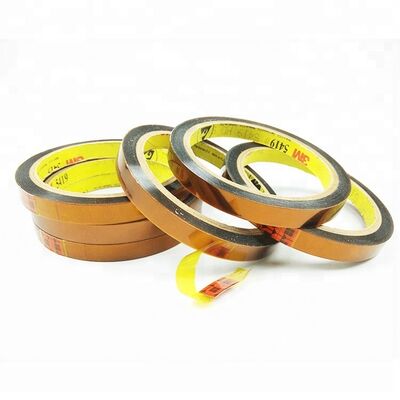

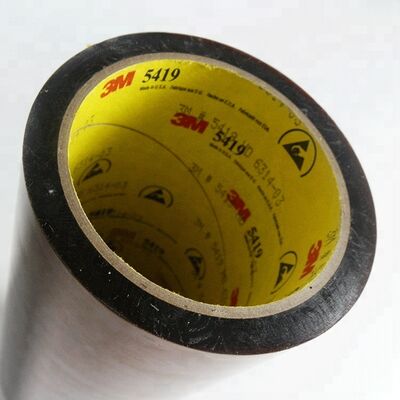

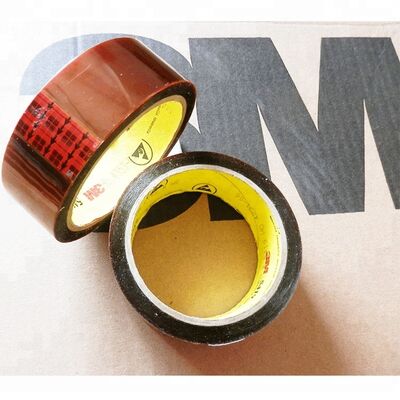

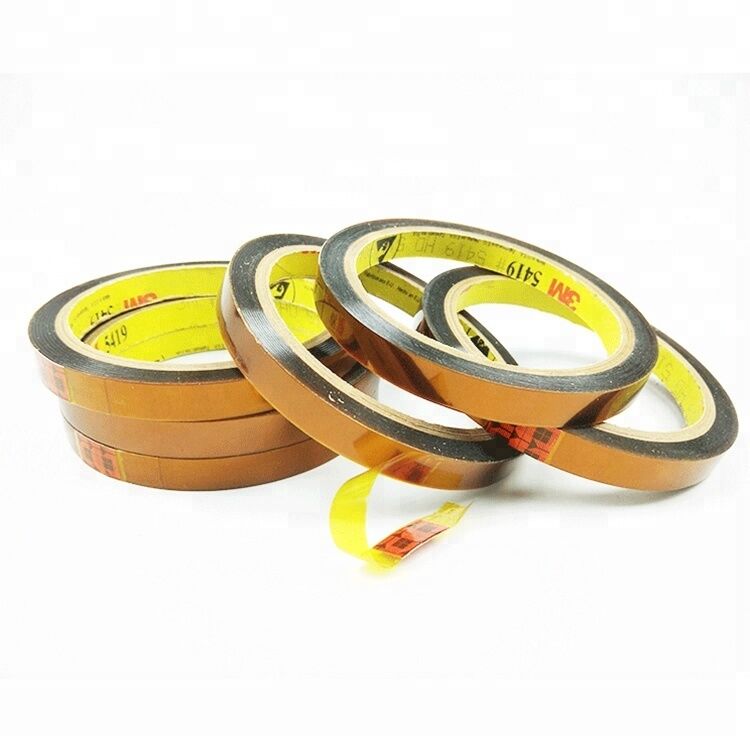

By using proprietary technology, extremely low electrostatic discharge can be generated during unfolding and removal from the PWB. Conventional polyimide tapes usually generate voltages exceeding 10,000 volts during use, which may damage the electronic components installed on the board. 3M Tape 5419 overcomes this problem without any typical drawbacks of conventional "anti-static" or "non-static" tapes (such as variable adhesion and opacity).
Product Features :
Product Applications :
|
Model |
3M 5419 |
|
Colour |
Gold |
|
Adhesive |
Silicone |
|
Material |
PI film |
|
Tensile strength at Break (lb/in) |
33 lb/in |
|
Temperature Use Range (℃) |
-73℃ ~ 260℃ |
|
Thickness (mm) |
0.07mm ,(Customizable) |
|
Specification |

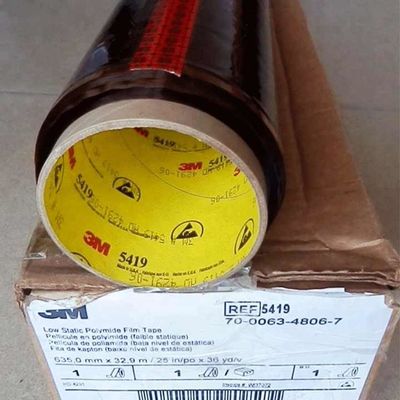

635mm × 33m (Customizable) |
|
Our services |
Processing such as production, die-cutting, stamping, molding, compounding, and slitting can be carried out according to the customer's requirements. The width can be cut to the size specified by the customer. |
|
Storage period |
Under conditions of 21°C and 50% relative humidity, the original packaging state allows for a storage period of 24 months from the date of production. |
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
فيديو
|
|
| الاسم التجاري: | 3M |
| رقم الطراز: | 5419 |
| الـ MOQ: | 1 roll |
| السعر: | USD1~USD50 |
| تفاصيل التعبئة: | التعبئة في علب كرتون |
| شروط الدفع: | تي/تي |
Product Description :
By using proprietary technology, extremely low electrostatic discharge can be generated during unfolding and removal from the PWB. Conventional polyimide tapes usually generate voltages exceeding 10,000 volts during use, which may damage the electronic components installed on the board. 3M Tape 5419 overcomes this problem without any typical drawbacks of conventional "anti-static" or "non-static" tapes (such as variable adhesion and opacity).
Product Features :
Product Applications :
|
Model |
3M 5419 |
|
Colour |
Gold |
|
Adhesive |
Silicone |
|
Material |
PI film |
|
Tensile strength at Break (lb/in) |
33 lb/in |
|
Temperature Use Range (℃) |
-73℃ ~ 260℃ |
|
Thickness (mm) |
0.07mm ,(Customizable) |
|
Specification |
635mm × 33m (Customizable) |
|
Our services |
Processing such as production, die-cutting, stamping, molding, compounding, and slitting can be carried out according to the customer's requirements. The width can be cut to the size specified by the customer. |
|
Storage period |
Under conditions of 21°C and 50% relative humidity, the original packaging state allows for a storage period of 24 months from the date of production. |
OUR SERVICES
1.Your enquiries about our products will be answered within 12 hours.
2.OEM or ODM projects are very welcome.
3.We can die cut or design products according to your requirements.
4.Provide perfect after-sales service, if you have questions, please contact us.
5.Pack according to your requirement and deliver on time.
